Phase Transformation Data

Phase transformation data at a glance

With the phase transformation data, StahlDat SX contains over 400 diagrams for different grades, short names and chemical compositions at variable temperatures.

Data basis

The time-temperature transformation (TTT) and continuous cooling transformation (CCT) diagrams are based on the atlas on heat treatment of the VDEh.

TTT diagram

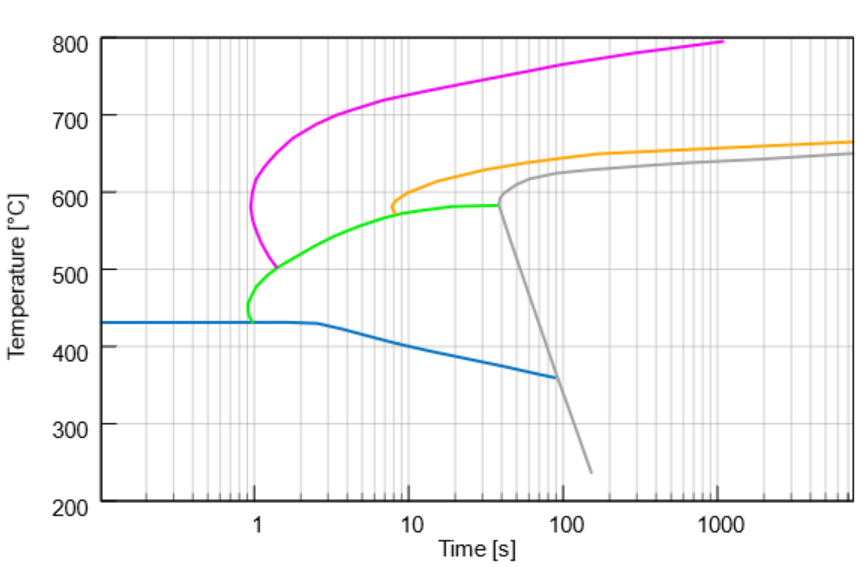

Fig. 1: Time-temperature transformation (TTT) diagram (schematic)

Schematic example: the curves are traced from an example figure and do not represent material data of a specific steel grade.

How to find suitable TTT/CCT data

With StahlDat SX phase transformation data, finding suitable data is particularly easy:

  • Search for phase composition at different austenitisation temperatures
  • Providing literature for the corresponding TTT and CCT diagrams
  • Tabular comparison of different diagrams
