Underlying formulars based on the SEP 1664, the hardenability curves enables the possiblity to calculate the hardenabilty of jominy tests based on the chemical compositions of steels.
The user has the possibility to parametrize the chemical composition and the distance to get the desired hardness. The calculation tool is part of the StahlDat SX standard version.

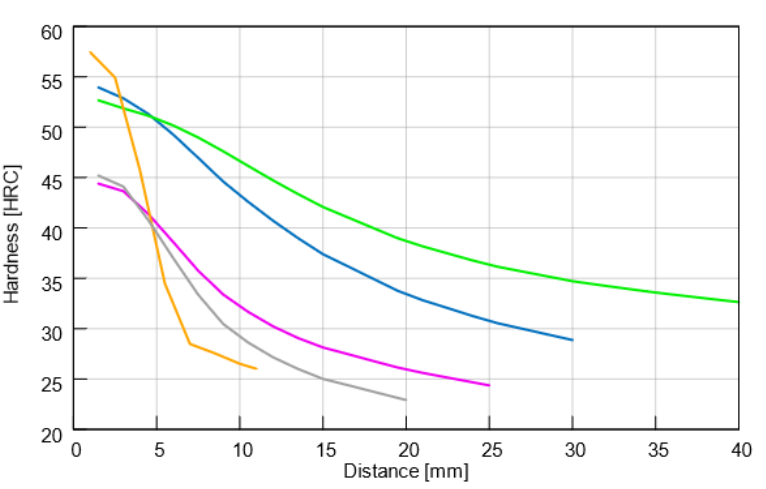

Fig. 1: Hardenability curve (schematic)
Schematic example: the curves are traced from an example figure and do not represent material data of a specific steel grade.
Calculation of hardenability
Calculate forehead quenching hardness (Jominy test) from the chemical analysis
The SEP 1664 and the database internal calculation tool provides regression models for the following steel group categories:
Cr-tempered steels
CrMo tempered steels
MnCr insert steels
MnCr hardened steels higher strength
MnCrB tempered steels
MnCrB insert steels
CrNi insert steels
CrNiMo Case Steels (2003)
MoCr Case Steels (2012)
CrV tempering steel
C-tempered steels
CrB tempered steels
AFP steels
Chain steels
Updated on 11 Nov 2026
